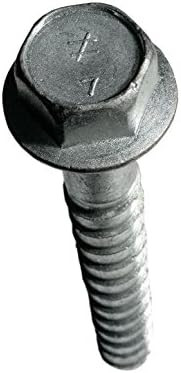

Simpson Strong Tie THD501200H Titen HD HeavyDuty Concrete Screw Anchor (Zinc) 1/2' x 12' (5/bx)

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.

Features & Specs

• Compatible Groove Diameter : 0.5 Inches
• Drive System : External Hex
• Head Type : Hex
• Screw Head Style : Flat
• Set Screw Thread Type : Unified National Coarse (UNC)
• Thread Class : Product-specific
• Thread Size : 1/2
• Thread Style : Right Hand, Fully Threaded
• Thread Type : Self-drilling

Item details

• ASIN : B005F1ZUV8
• Brand : Simpson Strong-Tie
• Fastener Type : Screw
• Item Weight : 0.01 Ounces
• Manufacturer : Simpson Strong-Tie
• Part Number : LDT1212;SC
• UPC : 707392672906

Materials & Care

• Exterior Finish : Zinc
• Finish Types : Zinc
• Material Type : Zinc
• Metal Type : Alloy Steel

Measurements

• Compatible Groove Diameter : 0.5 Inches
• Fastener Size : 1/2' x 12'
• Item Diameter : 0.5 Inches
• Item Dimensions : 12 x 0.5 x 0.5 inches
• Item Weight : 0.01 Ounces
• Size Name : 1/2' x 12'
• Thread Coverage : Fully Threaded
• Thread Size : 1/2
