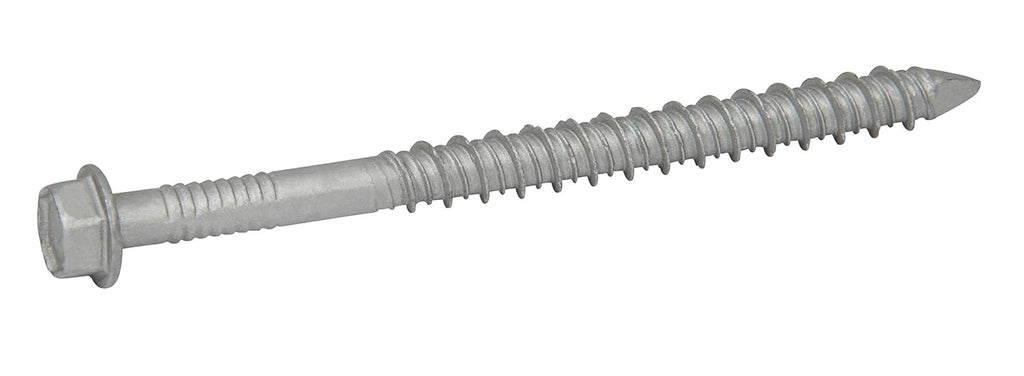

Red Head ITW 1/4 X 2-3/4' HWH 410 ss Buildex Tapcon Stainless Steel Concrete Anchors

$52.74 $133.74

Applications
The anchor is made from 410 Stainless Steel, and is Silver Climaseal Coated. This anchor is designed for use in Concrete, Block, and Brick.

Environment
The anchor is designed for use in a Moist environment.

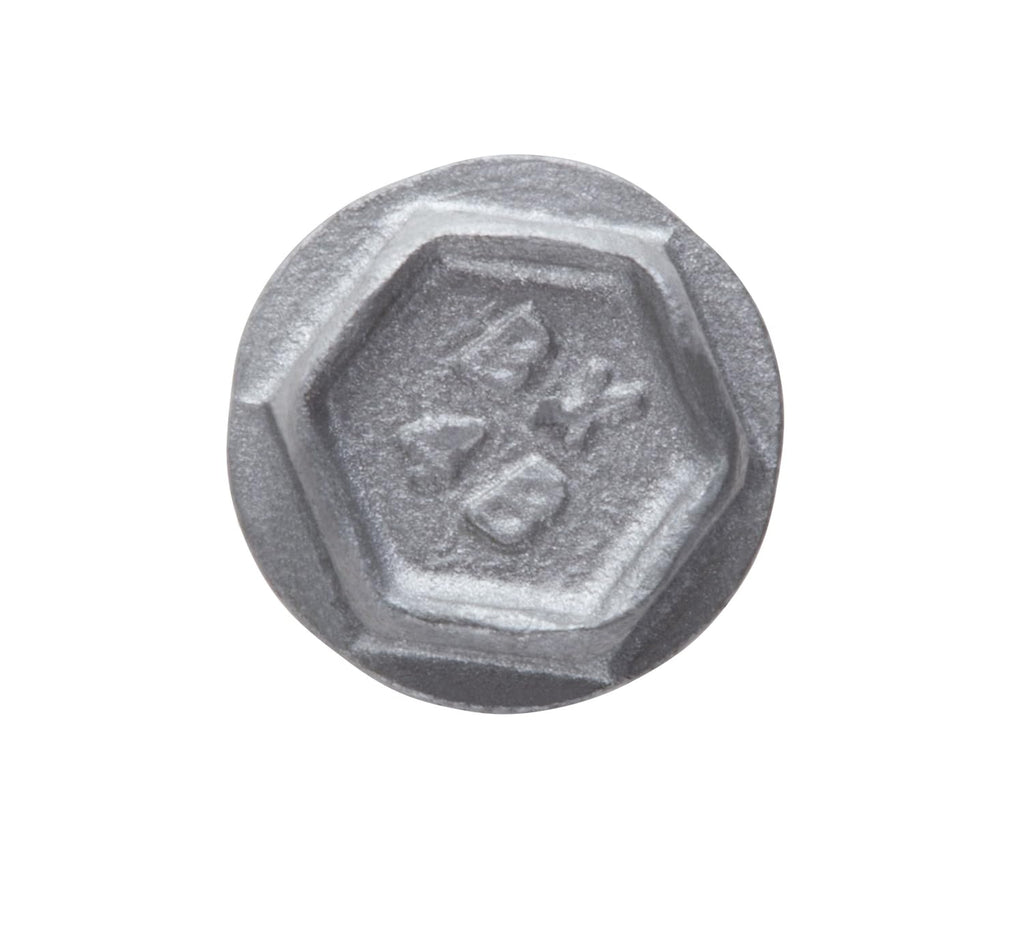

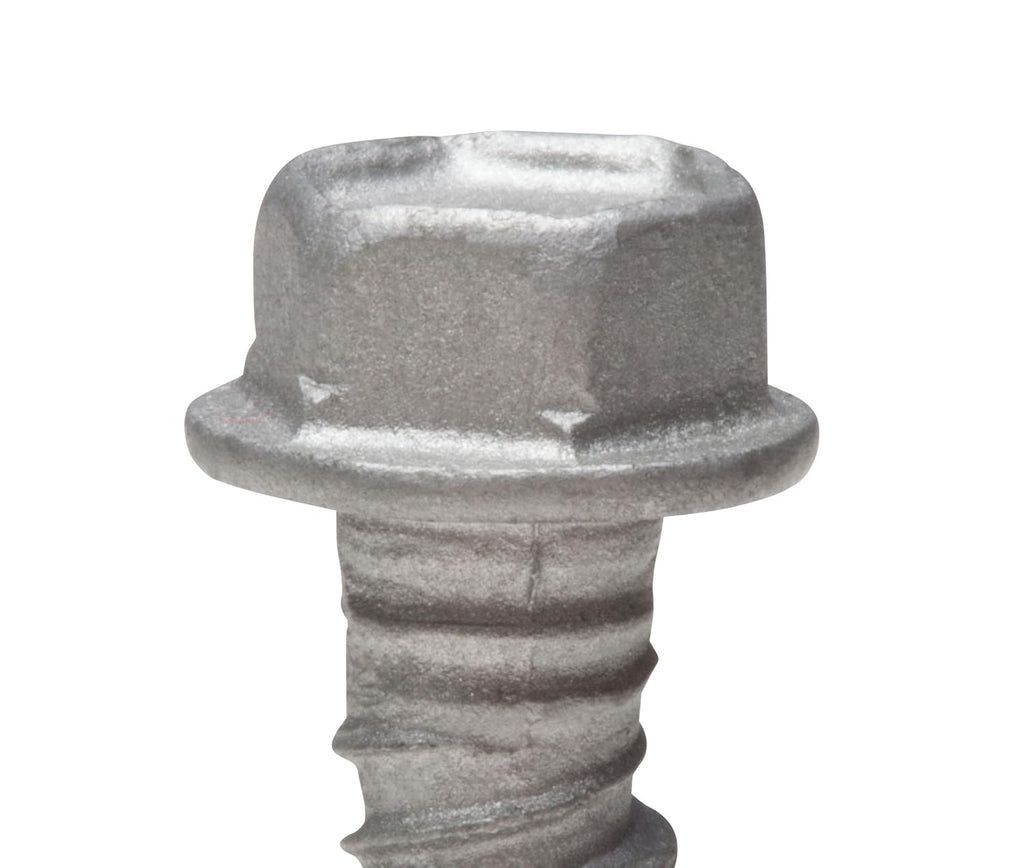

Head Style
The anchor is a Hex Washer head and is designed to allow the head to sit on top of the surface of the item being attached.

Hole Diameter/Bit Diameter
The anchor requires a 3/16' hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.

Driver Required
A 5/16' is required for driving the anchor into the base material.

Diameter of Anchor
The diameter of the anchor is 1/4'.

Length Anchor
The length of the anchor is 2-3/4'

Thread Length
The length of the threads on the anchor is 1-3/4' in length.

Minimum Embedment
The minimum anchor embedment into the concrete is 1'. Therefore, the anchor must be installed so that a minimum of 1' of the anchor is embedded into the concrete.

Maximum Fixture Thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-3/4'. This will ensure that t(more...)
